description
Spring Return Butterfly Disc Type Check Valve
Basic Info.
Product Description
Product Information

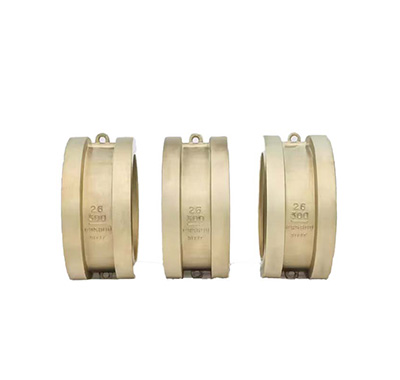

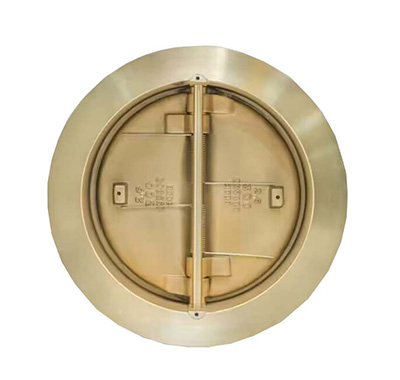

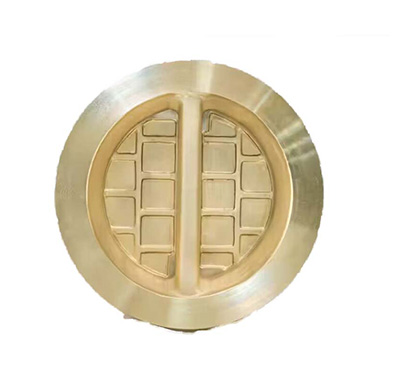

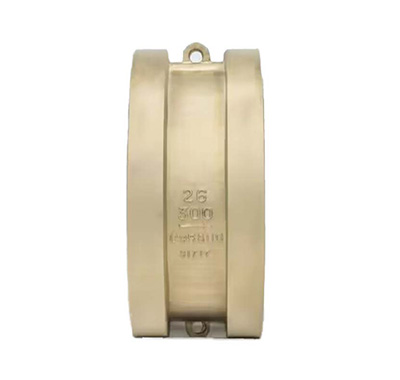

Cast Iron Double disc wafer check valve
•Size:DN40~DN800
•Body material available in Cast iron/Stainless steel
•Face to face dimension to EN558-1 (DIN3202 K3)
•Working Pressure:PN10,PN16
•Working Temperature: -20ºC to 120ºC for EPDM seat
-10ºC to 82ºC for NBR seat
| No | Name | Material |
| 1 | Check Valves Size | DN40-DN800 |
| 2 | Check Valves Body | Cast Iron ,Duticle Iron WCB, CF8, CF8M c95400 |
| 3 | Check Valves Seat | NBR EPDM VITON etc |
| 4 | Check Valves Disc | Duticle Iron C95400 CF8 CF8M |
| 5 | Check Valves Stem | 416/ 304 /316 |
| 6 | Check Valves Produce standard |
ANSIB16.1,EN1092,AS2129 |
| 7 | Check Valves Certificate | ISO,CE |
