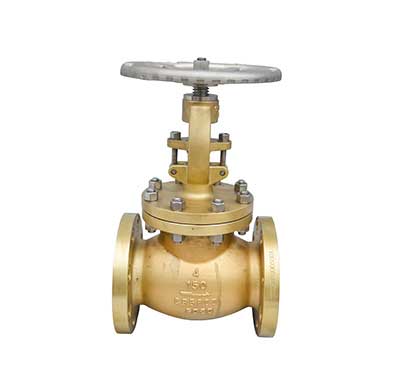

ANSI Globe Valve RF Flanged BB
Globe Valves – Bolted Bonnet
| Size | 2″ to 20″ (50 mm to 500 mm) |
| ASME Class | Class 150 to 2500 |
| Design Standard | API 623, BS 1873, ASME B 16.34 |
Beyond Standards:
- Globe Valve design complies to API 623 (higher stem diameter than BS 1873)
- Fugitive Emissions – Complies to API 624 and ISO 15848-1 (<50 ppm / Class AH leakage levels, optional)
- Globe Valves tested to API 624 at Yarmouth Research Lab, Maine, USA
- Fire safe – By design and tested to API 607/ISO 10497
- CE Marking – Meets requirements of Pressure Equipment Directive 2014/68/EU, Annexure III, Module H
- PED Module B1 Design Examination Certificate (certified by DNV) available
- Atex – Meets requirements of Atex Directive 94/9/EC (ATEX), category 2 non-electrical equipment
- SIL3 Safety Integrity Level for Automated Valves
- Globe valves successfully tested to Shell Design Validation Test Procedure 77/300 and witnessed by Shell Inspectors
Features that Add Value:
- Body Guided disc in globe valves (all sizes/classes) provides disc stability and avoids vibration of the disc-disc nut assembly
- Non-rotating rising stem design in globe valves (2” and above) yields a 20-30% reduction in valve torque vis-à-vis the Rotating rising stem globe valves
- In-situ seat design in all globe valves
- Inconel overlay cladded option available for economical solutions
Versatile Solutions:
- Y-Globe, Bellows-sealed, FBE/ Fusion-bonded Epoxy Lined, Steam-Jacketed
- ValvTrac™ RFID tagging offered for reliable digital traceability
Stainless Steel Corrosion-Resistant Globe Valves
Special Features:
- Integral body seat. In-situ hardfacing provided for Trim 12 and 16 valves
- Non-Rotating Rising-Stem for lower operating torque
- Globe Valve stem-disc connection, allows disc to swivel and align for better seal
- Guided disc to avoid vibration during throttling
-
Body-bonnet Joint – Class 150 Globe Valves offered with square-shaped body-bonnet
joints in size 2” and with oval-shaped joints in 3” size. Valves in all other sizes and pressure classes offered with circular body-bonnet joints.
- Complies to API 624 and ISO 15848 fugitive emission requirements
