Small Bore Valves (Up to #1500)

FX FLOW CONTROL BV manufactures a versatile range of Small Bore Forged Steel Gate, Globe and Check Valves. The portfolio comprises valves in T-pattern and Y-pattern, as well as Cryogenic and Bellows-sealed valves. Forged Steel Gate, Globe and Check Valves is available in a variety of materials and end connections to meet customer requirements.

Salient Features:

As a standard, valves in ASME classes up to 800 are supplied with bolted body-bonnet joints; for higher pressure classes, screwed joints are offered.

• Rugged construction
• Suited to handle high pressure and temperatures – up to 425 deg C in carbon steel and 540 deg C in alloy steel
• High integrity – Bolted body-bonnet are provided with spiral-wound stainless steel gasket and graphite filler for high integrity sealing
• T-head stem-disc connection of Gate Valve fully meets strength requirements of API 602 and API 598
• High pressure valves are supplied with screwed body-bonnet joint, which ensures ease of inspection and in-line maintenance, and minimises downtime
• Y-pattern design in Globe and Check valves ensures a near-perfect flow which significantly reduces pressure drop and turbulence when compared to conventional designs

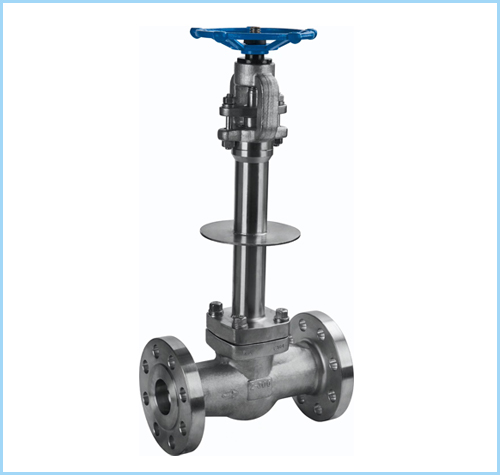

• Cryogenic Forged Steel Gate, Globe and Check Valves conform to BS 6364
• Valves can be offered to NACE MR-0175 and other special NACE requirements

Versatile Range:

• T-pattern and Y-pattern Valves
• Specials: Cryogenic and Bellows-sealed valves
• Material Grades: A105, LF2, F5, F11, F22, F304/ F304L, F316/ F316L, F347, Monel
