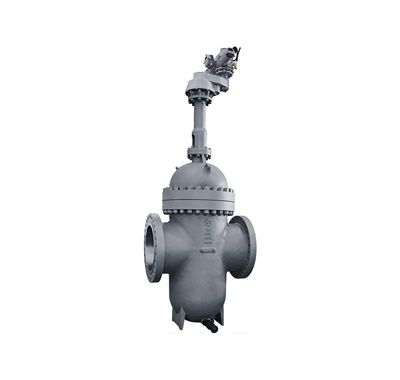

Slab Gate Valve
For further queries, send us a message! Our team will be in touch.
FX FLOW CONTROL BV
Tel: +86-577-67370322
Fax: +86-577-67370522
Whatsapp: 18072111115
Email:info@fxflow.cn
Address: No.518 binhai three road, economic and technological development zone,Wenzhou, Zhejiang, China
description
Size:2”~60(DN50~DN1500)
Rating:150Lb~2500Lb(PN16~PN420)
Materials: Carbon steel /Stainless steel / Alloy steel
End connection :RF/RTJ/BW
Operation: Hand wheel / Gear/ motor/pneumatic actuators
Optional features :By-pass/Vent/Drain system,Jacket structure,Renewable seat,Double packing design
Lockable design(For gear operation)
Emergency sealing device
With flow guide hole
Full opening pigable,Extended bonnet,Cavity pressure relief
Chain wheel operation
With Indicator or viewing window(For hand wheel/gear operation)
ISO 5210 top flange
Gate Valves – Slab
| Size | 2″ to 72″ (50 mm to 1800 mm) |
| ASME Class | Class 150 to 2500 |
| Design Standard | API 600, API 603, ASME B 16.34 |
Beyond Standards:
- Gate Valve design complies to API 600, Edition 13
- Offered with API 600 monogram
- Fugitive Emissions – Complies to API 624 and ISO 15848-1 (<50 ppm / Class AH leakage levels, optional)
- Gate Valves tested to API 624 at Yarmouth Research Lab, Maine, USA
- Body gasket leakage <100 ppm observed on eight sizes tested as per API 624 Annexure A
- Fire Safe – By design and tested to API 607/ ISO 10497
- CE Marking – Meets requirements of Pressure Equipment Directive 2014/68/EU, Annexure III, Module H
- PED Module B1 Design Examination Certificate (certified by DNV) available
- Atex – Meets requirements of Atex Directive 94/9/EC (ATEX), category 2 non-electrical equipment
- SIL 3 Safety Integrity Level for Automated Valves
- Gate valves successfully tested to Shell Design Validation Test Procedure 77/300 and witnessed by Shell Inspectors
Features that Add Value:
- Robust stem-wedge design connection successfully tested as per API RP 591 Annex B
- Hardfaced body guides and wedge slots (sizes >24”)
- Inconel overlay/ cladded options offered
Versatile Solutions:
- Options: Bellows-sealed, FBE/ Fusion-bonded Epoxy Lined, Steam-Jacketed
- ValvTrac™ RFID tags for reliable digital traceability
API 603 Stainless Steel Corrosion-Resistant Gate Valves with API Monogram
Special Features:
- Integral body seat. In-situ hardfacing provided for Trim 12 and 16 valves
- Flex Wedge – Compensates for seat distortion and eliminates disc-jamming
- Single-piece forged stem with T-head for superior strength
-
Body-bonnet Joint – Class 150 Globe Valves offered with square-shaped body-bonnet
joints in size 2” and with oval-shaped joints in 3” size. Valves in all other sizes and pressure classes offered with circular body-bonnet joints.
- Complies to API 624 and ISO 15848 fugitive emission requirements
