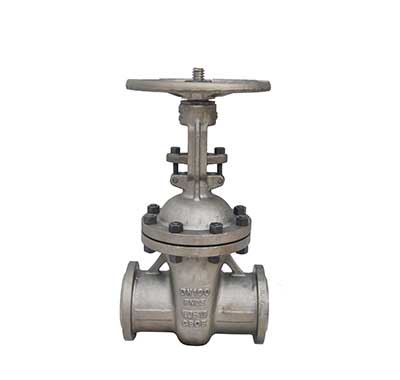

German Standard DIN Flanged Gate Valve

For further queries, send us a message! Our team will be in touch.

FX FLOW CONTROL BV

Tel: +86-577-67370322

Fax: +86-577-67370522

Whatsapp: 18072111115

Email:info@fxflow.cn

Address: No.518 binhai three road, economic and technological development zone,Wenzhou, Zhejiang, China

description

DIN Flanged Gate Valve,Flanged,Manual

Gate Valves – Bolted Bonnet

Size	2″ to 72″ (50 mm to 1800 mm)
ASME Class	Class 150 to 2500
Design Standard	API 600, API 603, ASME B 16.34

Beyond Standards:

Gate Valve design complies to API 600, Edition 13
Offered with API 600 monogram
Fugitive Emissions – Complies to API 624 and ISO 15848-1 (<50 ppm / Class AH leakage levels, optional)
Gate Valves tested to API 624 at Yarmouth Research Lab, Maine, USA
Body gasket leakage <100 ppm observed on eight sizes tested as per API 624 Annexure A
Fire Safe – By design and tested to API 607/ ISO 10497
CE Marking – Meets requirements of Pressure Equipment Directive 2014/68/EU, Annexure III, Module H
PED Module B1 Design Examination Certificate (certified by DNV) available
Atex – Meets requirements of Atex Directive 94/9/EC (ATEX), category 2 non-electrical equipment
SIL 3 Safety Integrity Level for Automated Valves
Gate valves successfully tested to Shell Design Validation Test Procedure 77/300 and witnessed by Shell Inspectors

Features that Add Value:

Robust stem-wedge design connection successfully tested as per API RP 591 Annex B
Hardfaced body guides and wedge slots (sizes >24”)
Inconel overlay/ cladded options offered

Versatile Solutions:

Options: Bellows-sealed, FBE/ Fusion-bonded Epoxy Lined, Steam-Jacketed
ValvTrac™ RFID tags for reliable digital traceability

API 603 Stainless Steel Corrosion-Resistant Gate Valves with API Monogram

Special Features:

Integral body seat. In-situ hardfacing provided for Trim 12 and 16 valves
Flex Wedge – Compensates for seat distortion and eliminates disc-jamming
Single-piece forged stem with T-head for superior strength
Body-bonnet Joint – Class 150 Globe Valves offered with square-shaped body-bonnet
joints in size 2” and with oval-shaped joints in 3” size. Valves in all other sizes and pressure classes offered with circular body-bonnet joints.
Complies to API 624 and ISO 15848 fugitive emission requirements
