Cryogenic and Bellows-sealed valves

Size 1/2” to 2″ (15 mm to 50 mm)

ASME Class Class 150 to 1500

Design Standards API 602, ASME B16.34, BS 6364, MSS SP84

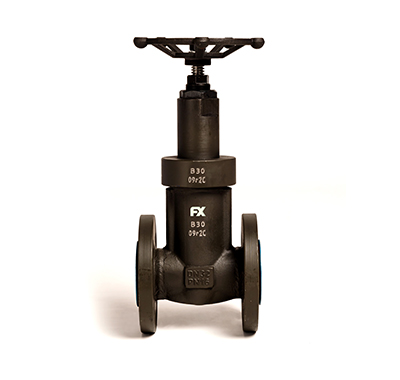

FX FLOW CONTROL BV manufactures a versatile range of Small Bore Forged Steel Gate, Globe and Check Valves. The portfolio comprises valves in T-pattern and Y-pattern, as well as Cryogenic and Bellows-sealed valves.

Salient Features:

As a standard, valves in ASME classes up to 800 are supplied with bolted body-bonnet joints; for higher pressure classes, screwed joints are offered.

Rugged construction

Suited to handle high pressure and temperatures – up to 425 deg C in carbon steel and 540 deg C in alloy steel

High integrity – Bolted body-bonnet are provided with spiral-wound stainless steel gasket and graphite filler for high integrity sealing

T-head stem-disc connection of Gate Valve fully meets strength requirements of API 602 and API 598

High pressure valves are supplied with screwed body-bonnet joint, which ensures ease of inspection and in-line maintenance, and minimises downtime

Y-pattern design in Globe and Check valves ensures a near-perfect flow which significantly reduces pressure drop and turbulence when compared to conventional designs

Cryogenic Forged Steel Gate, Globe and Check Valves conform to BS 6364

Valves can be offered to NACE MR-0175 and other special NACE requirements

Versatile Range:

Specials: Cryogenic and Bellows-sealed valves

Material Grades: A105, 09G2S,LF2, F5, F11, F22, F304/ F304L, F316/ F316L, F347, Monel
