High Pressure Check Valve
For further queries, send us a message! Our team will be in touch.
FX FLOW CONTROL BV
Tel: +86-577-67370322
Fax: +86-577-67370522
Whatsapp: 18072111115
Email:info@fxflow.cn
Address: No.518 binhai three road, economic and technological development zone,Wenzhou, Zhejiang, China
description

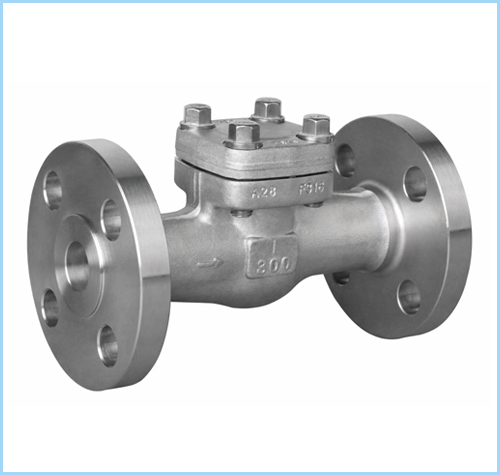

High pressure check valve
Specifications
| Valve Size | 2″~ 24″, DN50–DN600 |
| Pressure Class | 900LB~2500LB, |
| Materials | WCB, WC6, WC9, WCC, CF8, CF3, CF3M, CF8M, 4A, 5A CF8C ETC. |
| Design and Manufacturing Standards | BS 1868, DIN3840 |
| Face to Face Standards | ASME B16.10, DIN3202, BS EN558-1 |
| Flange Dimension Standards | ASME B 16.5, ASME B16.47, DIN2543, BS EN1092-1, DIN2544; |
| Pressure Test Standards | API598, DIN 3230, EN 12569 |
| Fire Safety Test Standards | API 607 |
| Quality/Product Certifications | ISO9001, ISO14001, ISO18001 |
| Fugitive Emissions | ISO 15848-1, API 622 |
| NACE | NACE MR 0103 NACE MR 0175 |
| Valve operator options | – |
| Shutoff Class | API 598 (Zero Leakage), API 6D |
| Bore | FULL BORE |
| Process Connection Types | RF, RTJ, BW |
