description

Size:2”~24”(DN50~DN600)

Rating:150Lb~2500Lb(PN16~PN420)

Materials: Carbon steel /Stainless steel / Alloy steel /Special ( Monel /Inconel /Hastelly  etc.) alloy steel

End connection: RF/RTJ/BW

Operation: Lever  Gear  motor/pneumatic actuators

Optional features :Full & reduced bore; Anti-static device; Blow out proof stem

Fire safe design per API 607/API 6FA; Double block &bleed;

Emergency sealing device (For 6”& larger);

Vent valve (For 6”& larger);

Lifting lugs and support feet  (For 8”& larger);

ISO 5211 top flange; Safety relief  device

Lockable design(For gear operation)

Cavity pressure relief; NACE MR-0175

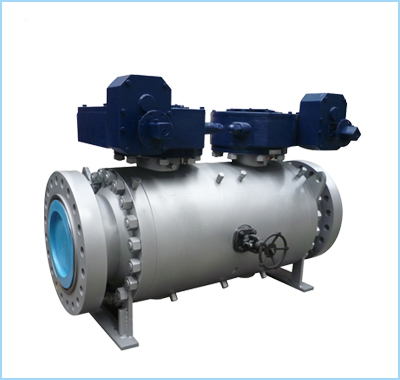

DBB Ball Valve

Size:2”~24”(DN50~DN600)

Rating:150Lb~2500Lb(PN16~PN420)

Materials: Carbon steel /Stainless steel / Alloy steel /Special ( Monel /Inconel /Hastelly  etc.) alloy steel

End connection: RF/RTJ/BW

Operation: Lever  Gear  motor/pneumatic actuators

Optional features :Full & reduced bore; Anti-static device; Blow out proof stem

Fire safe design per API 607/API 6FA; Double block &bleed;

Emergency sealing device (For 6”& larger);

Vent valve (For 6”& larger);

Lifting lugs and support feet  (For 8”& larger);

ISO 5211 top flange; Safety relief  device

Lockable design(For gear operation)

Cavity pressure relief; NACE MR-0175

DBB Ball valves suitable for those service areas of Gas Treatment, LNG, Oil and Gas, Power Generation, Power Generation, Chemical Processing, Gas Production, LNG, Offshore, Oil Production, Petrochemical Processing, Petroleum Production and Refining,

DBB Valves requires two in-line isolation valves and a bleed valve. These elements are used to drain or vent trapped fluid between the two closure elements in order to safely isolate the downstream pipe. This feature is achieved with one single valve containing a bleed port between the two valves.
